10 Really Odd Experimental Aircraft Designs

A little while back, we produced a piece covering some of Germany’s mighty strange experimental aircraft designs. They were a joy to behold. Of course, Germany wasn’t the only country to dream up weird, out of the blue, prototypes.

Here are another 10 impressively strange experimental aircraft for you to revel in:

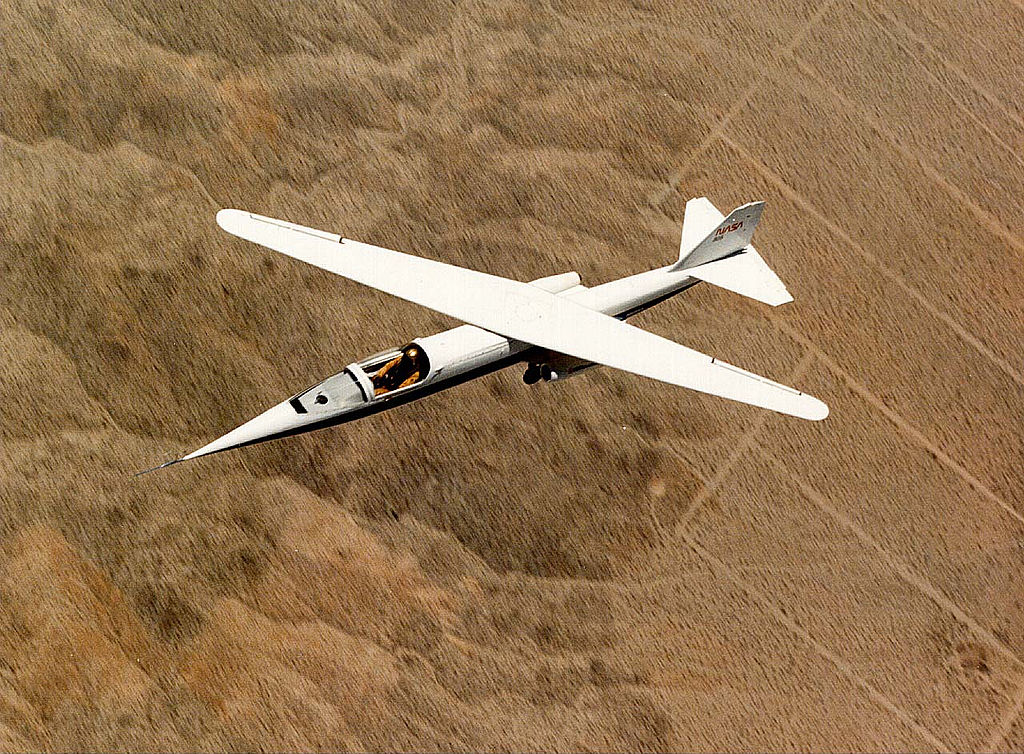

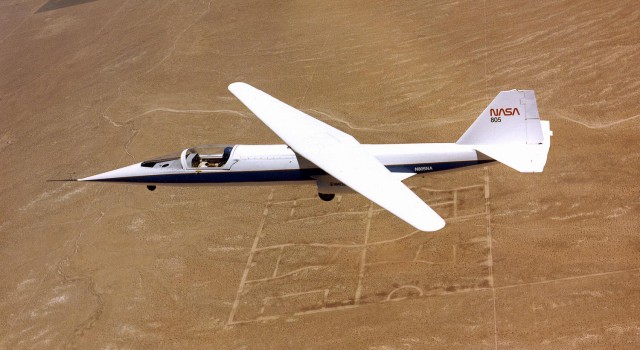

Ames-Dryden-1

At high speeds, the wing would be pivoted at up to 60 degrees to the aircraft’s fuselage for better high-speed performance. Studies showed these angles would decrease aerodynamic drag, permitting increased speed and longer range with the same fuel expenditure. Also it would look really weird.

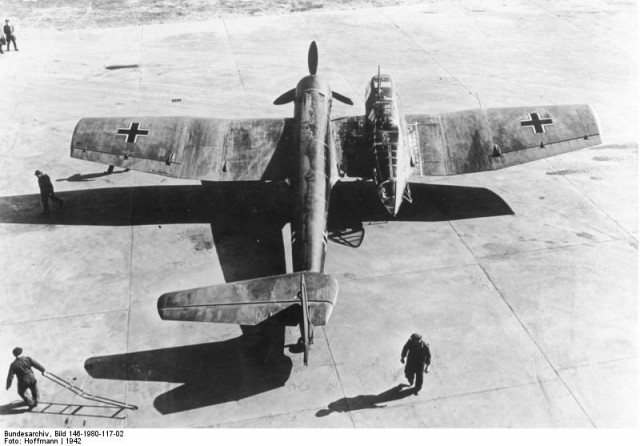

Blohm & Voss BV 141

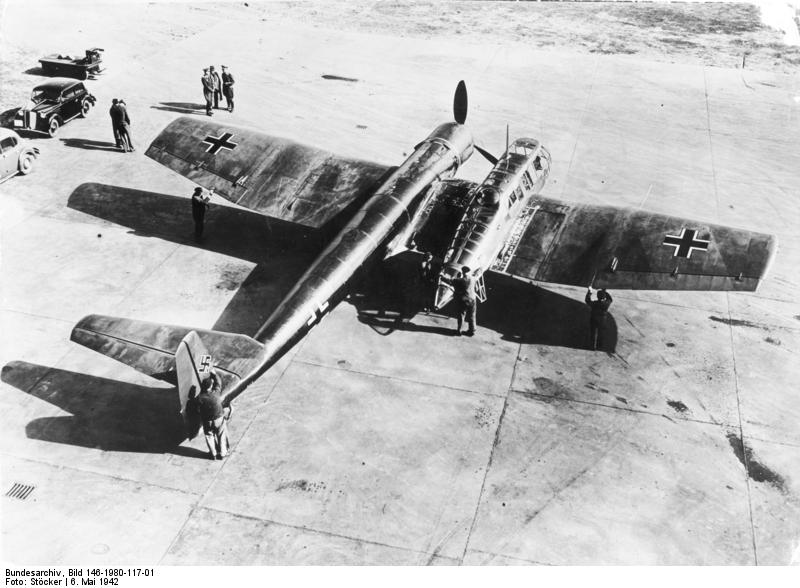

The asymmetry helped provide the gunner a better line of sight. Although the Blohm & Voss BV 141 performed well, it was never ordered into full-scale production, partly because the preferred engine was hard to acquire, and there was substantial competition from another tactical reconnaissance aircraft, the Focke-Wulf Fw 189.

Aero Spacelines Super Guppy

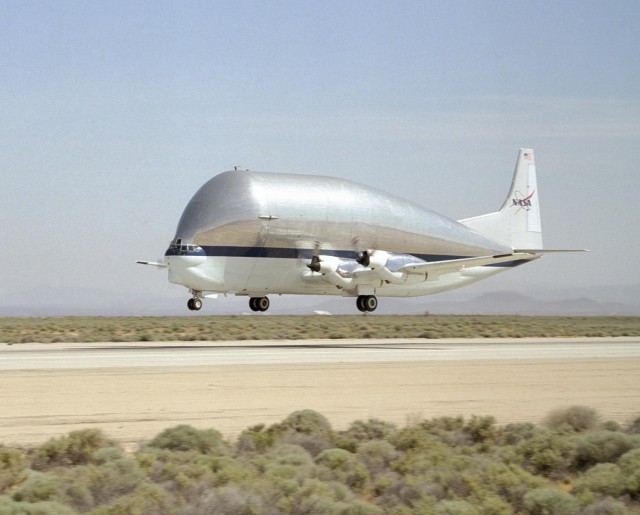

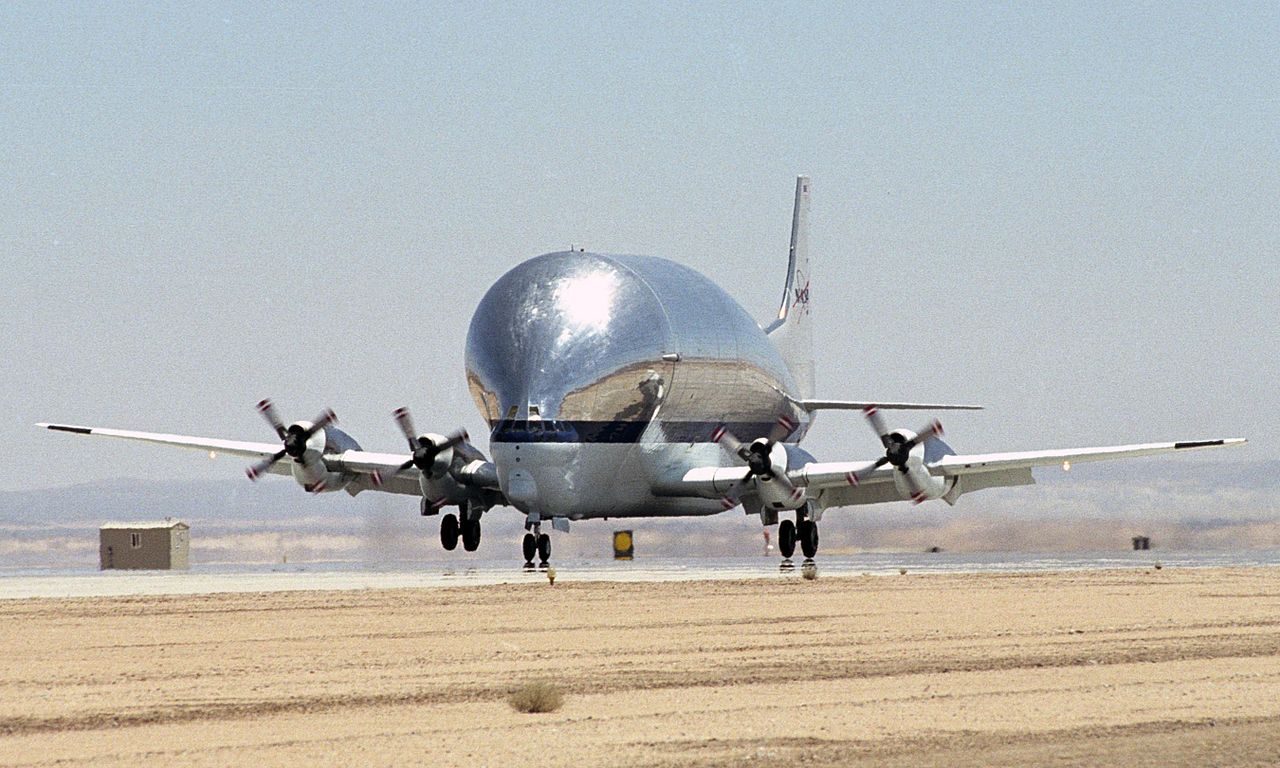

The Aero Spacelines Super Guppy is a large, wide-bodied cargo aircraft that is used for hauling outsize cargo components, such as parts for the International Space Station (ISS)

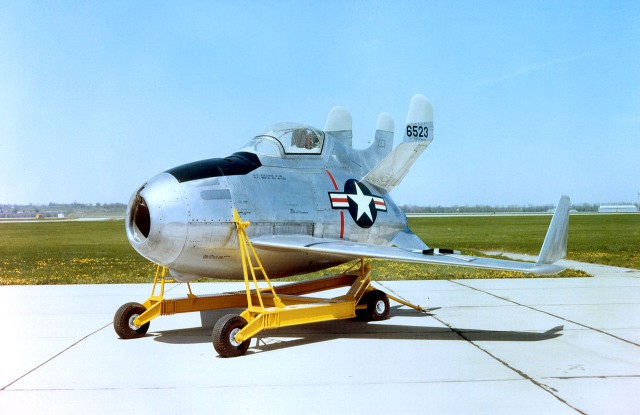

McDonnell XF-85 Goblin

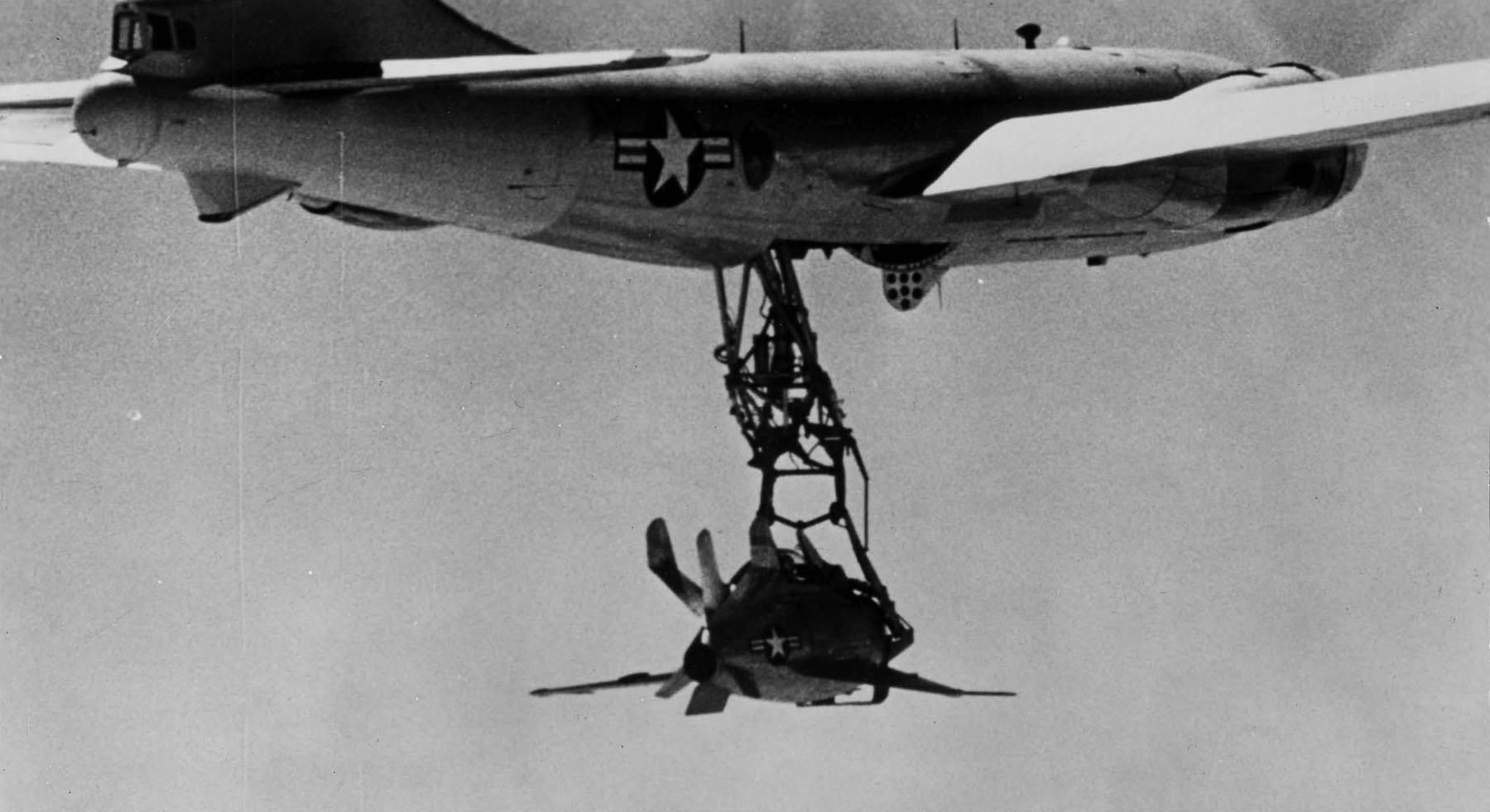

These little dinky things were designed to be dropped by bombers to carry out attacks once they’d arrived at their destination. Like so:

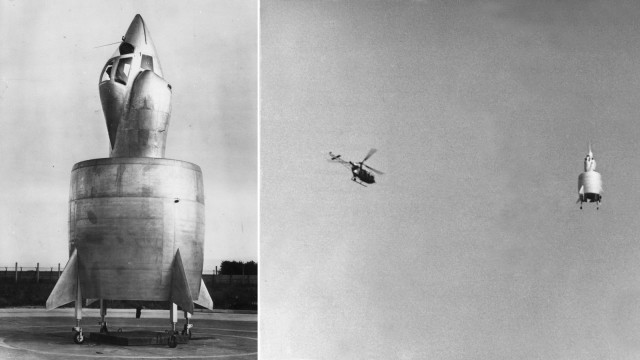

SNECMA Coléoptère

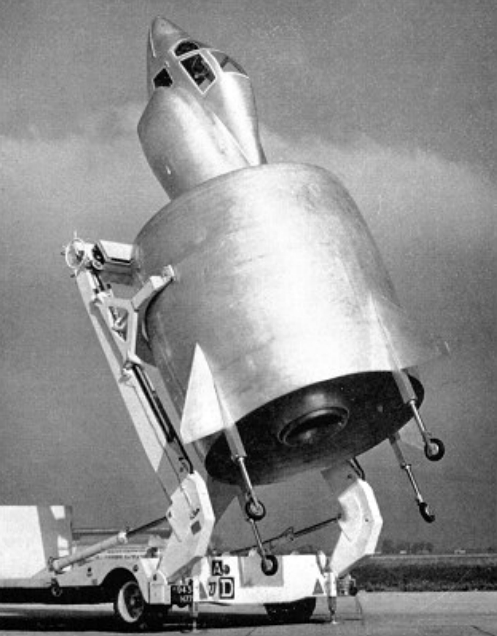

The SNECMA C.450 Coléoptère (meaning “beetle” in French) was a VTOL aircraft developed by the French company SNECMA in the 1950s.

It was a single-person aircraft with an annular wing designed to take-off and land vertically, therefore requiring no runway and very little space. The sole prototype was destroyed on its ninth flight.

Lockheed XFV

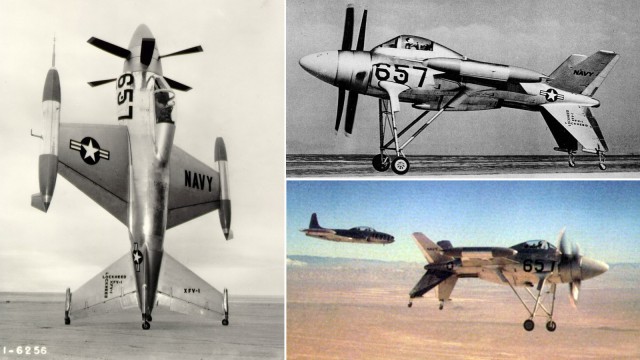

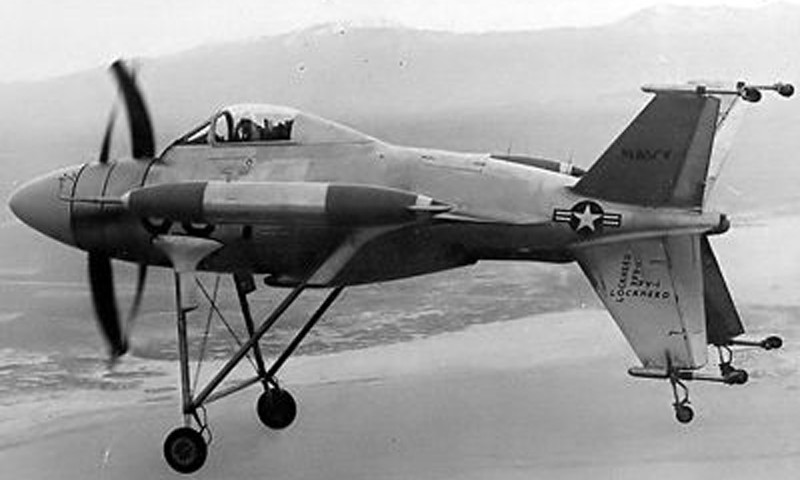

This weirdo was an experimental “tailsitter” prototype aircraft built by Lockheed in the early 1950s. It could carry out a vertical takeoff and landing and was used for protecting convoys.

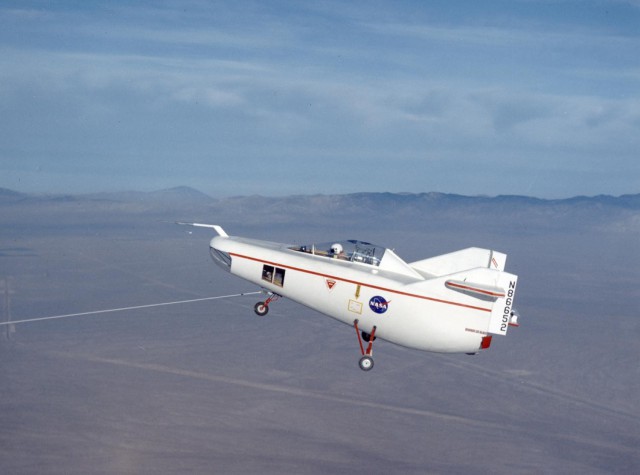

M2-F1

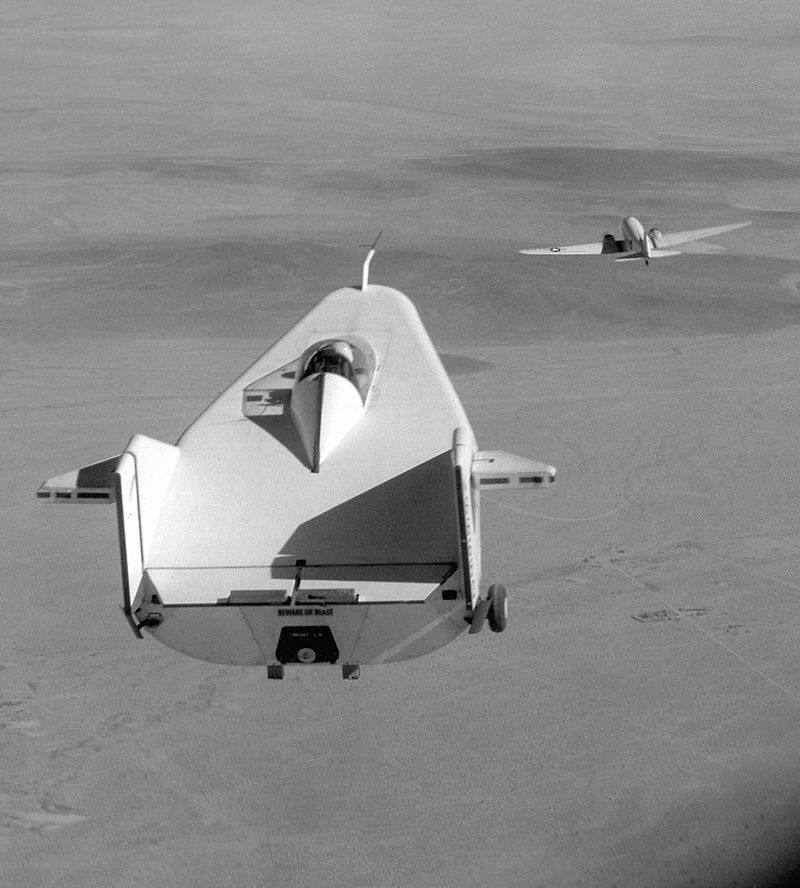

The NASA M2-F1 was a lightweight, unpowered prototype aircraft, developed to flight test the wingless lifting body concept. It looked like a “flying bathtub,” and was designated the M2-F1, the “M” referring to “manned” and “F” referring to “flight”.

M39B Libellula

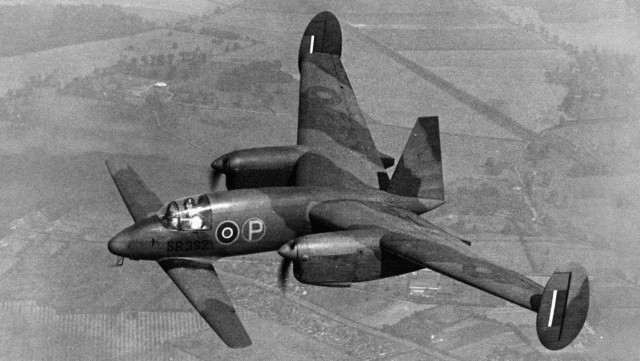

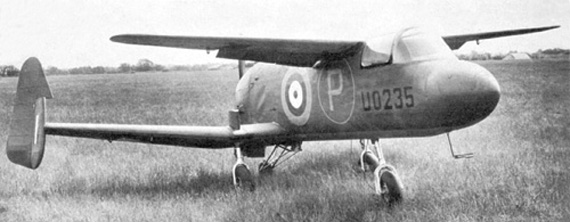

The M.39B Libellula (from Libellulidae, a taxonomic family of dragonflies) was a Second World War tandem wing experimental aircraft built by Miles Aircraft.

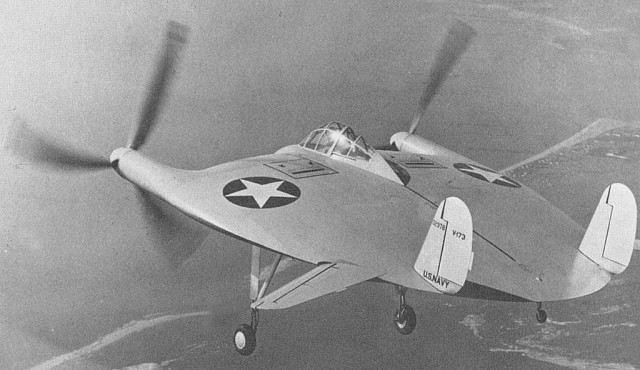

VTOL Vought V-173

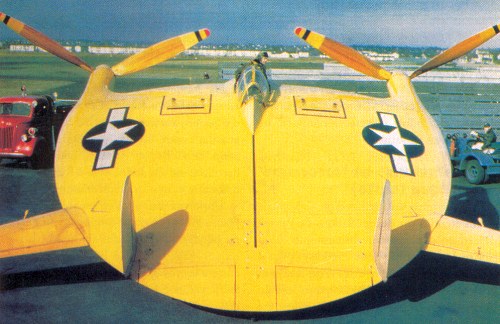

The Vought V-173 “Flying Pancake” designed by Charles H. Zimmerman was an American experimental test aircraft built as part of the Vought XF5U “Flying Flapjack” World War II United States Navy fighter aircraft program.

VVA 14

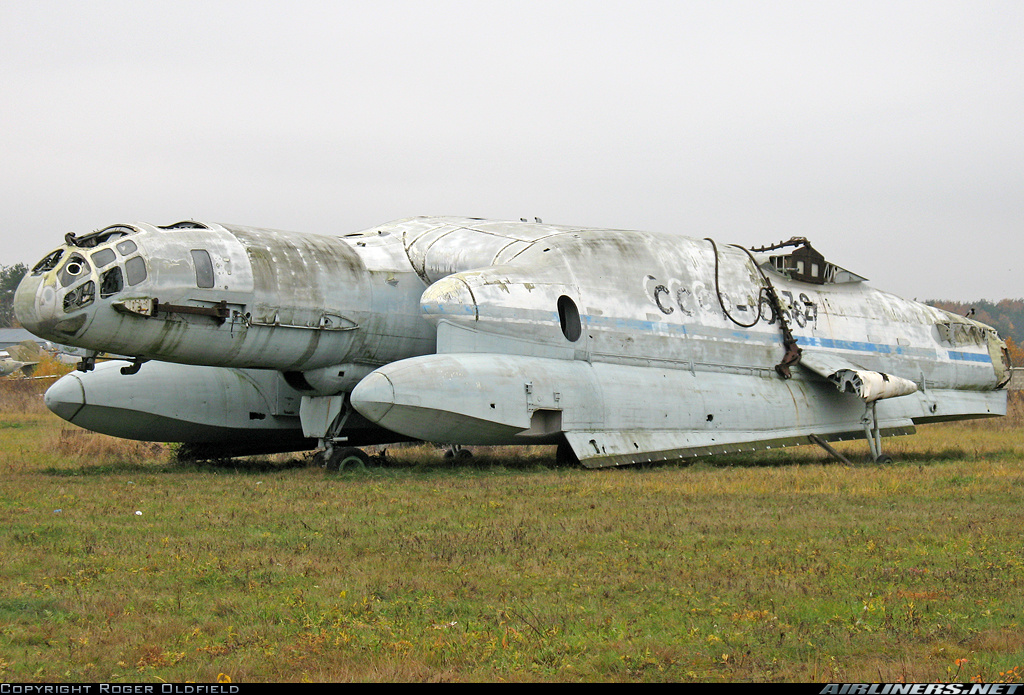

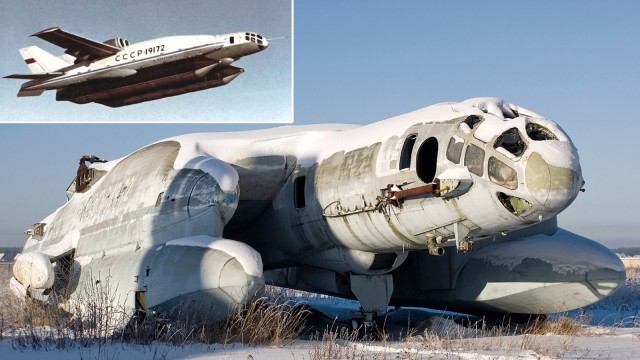

The VVA 14 was developed in the Soviet Union during the 1970s. It was designed to take-off from the water and fly at high speed over long distances, it was to make true flights at high altitude, but also have the capability of ‘flying’ efficiently just above the sea surface, using aerodynamic ground effect.
